Equipment Core Facility Biomedical Research Core Facilities Mass Spectrometry Core SYNAPT XS Ion Mobility Time-of-Flight Mass Spectrometer

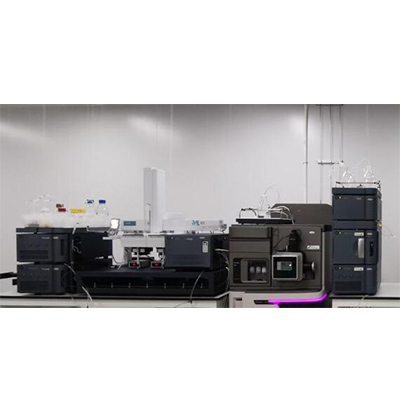

SYNAPT XS Ion Mobility Time-of-Flight Mass Spectrometer

Brand：Waters
Model：Synapt XS
Fixed Asset Number：S210000998
Affiliated Core：Multi-omics Mass Spectrometry Core
Location：115,Building B, Gaoke Innovation Center
Equipment Manager：Zhao Gongzheng, Zheng Ting, Li E
Contact：19129910970，zhaogz@szbl.ac.cn

Instrument Time Booking
Technical Parameters Function and Application Accessories and Configurations

1. MS³ Capability (MS/MS/MS): Acquires MS³ spectra for enhanced fragment ion information and higher confidence in identification (non-in-source CID).

2. Integrated Ion Mobility Separation: The ion mobility cell is positioned post-collision cell, enabling mobility separation for both MS and MS/MS spectra. Requires no pre-optimization with standards.

3. Ion Mobility Resolving Power Demonstration: Using isomeric peptides Ser-Asp-Gly-Arg-Gly and Gly-Arg-Gly-Asp-Ser (both [M+2H]²⁺ *m/z* 246.1) with collision cross sections (Ω) of 222.7 Ų and 211.7 Ų respectively, baseline separation is achieved with a resolving power (Ω/ΔΩ) >40.

4. CCS (Collision Cross Section) as Identification Metric: Provides CCS values as a complementary parameter for confident identification and improved quantification accuracy.

5. Mass Range:

  • Quadrupole: *m/z* 20–16,000

  • TOF: *m/z* 20–64,000

6. Resolution: Maintains resolution ≥80,000 FWHM at the instrument's maximum sampling rate.

7. HDX (Hydrogen-Deuterium Exchange) System: Integrated configuration.
