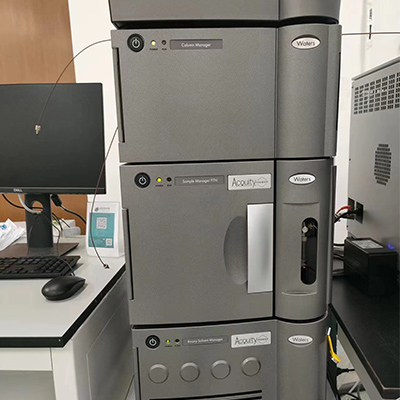

• 1. Ultra-High-Performance Liquid Chromatograph (UHPLC):

  •     Maximum system pressure: 18,000 psi

  •     Compatible with 1.7 μm particle size columns

• 2. Flow Path with Maximum Inertness:

  •     Fully inert materials minimize surface interactions

  •     Reduces variability and sample loss

  •     No passivation required

• 3. Autosampler:

  •     96-position tray for 2 mL vials

  •     Temperature range: 4°C to 40°C (<4°C optional with cooling module)

• 4. Column Compartment:

  •     Temperature range: 4.0°C to 90.0°C

• 5. Photodiode Array Detector (PDA):

  •     Wavelength range: 190–800 nm

• 6. Fluorescence Detector (FLD):

  •     Excitation range: 200–890 nm

  • Emission range: 210–900 nm

Featuring High-Performance Surface (HPS) technology, this fully inert UPLC system minimizes variability and sample loss caused by surface interactions while eliminating time-consuming passivation procedures and mobile phase additives. It delivers enhanced sensitivity, reproducibility, and ultimately, greater confidence in analytical results. Primarily designed for qualitative and quantitative compound analysis.

Binary Solvent Manager; Autosampler; Column Compartment; Photodiode Array (PDA) Detector; Fluorescence (FLD) Detector
