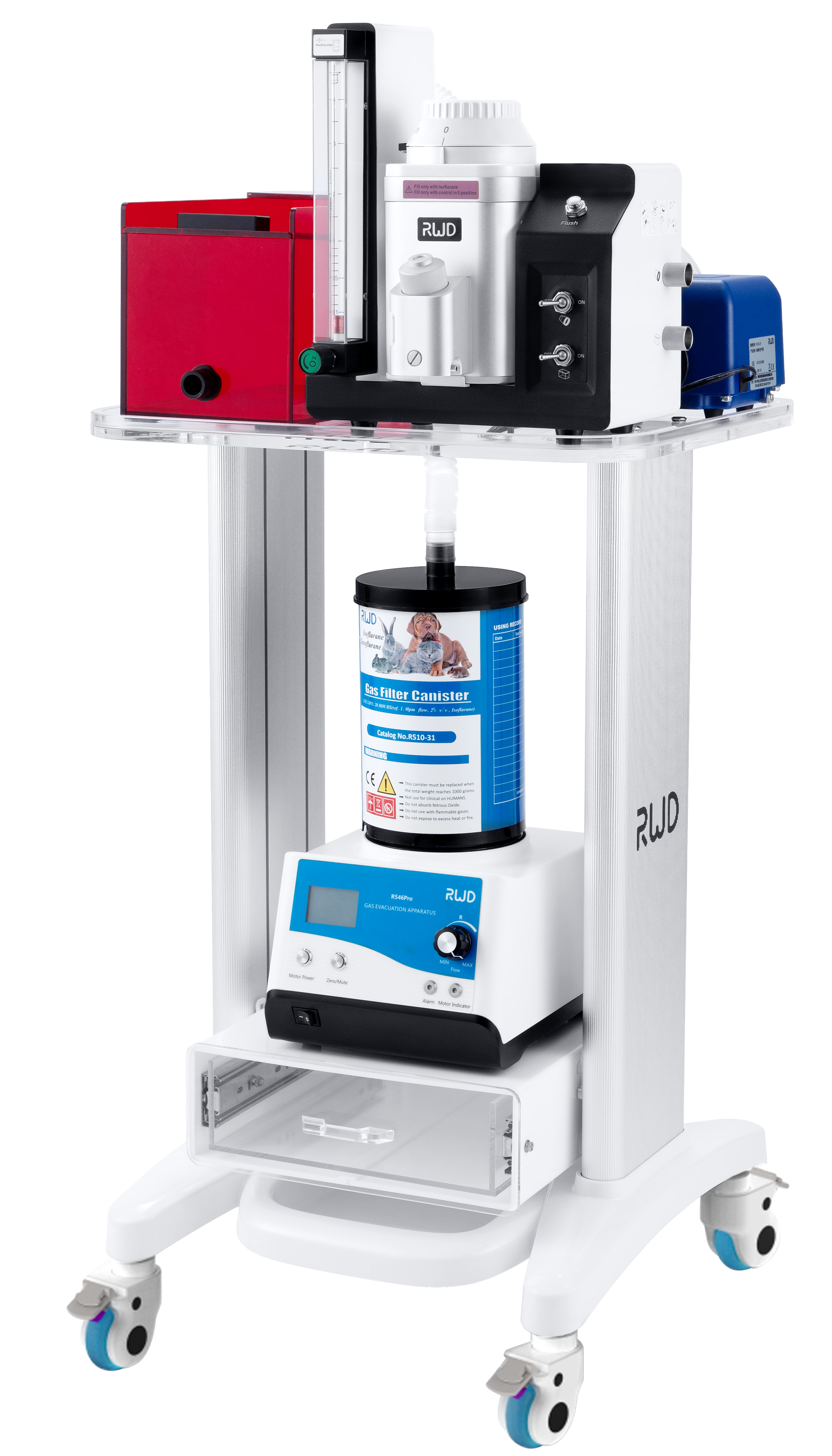

No. 1 (Model: R540IE, Asset No.: hxmzjyd20221130)
No. 2 (Model: R500, Asset No.: 100012)
No. 3 (Model: R500, Asset No.: 100001)
No. 4 (Model: R500, Asset No.: 100013)
No. 5 (Model: R540IE, Asset No.: hxmzjzms20221201)
Brand: RWD
Location: 2309A/2408A, Building A, Gaoke Innovation Center
Affiliated Core：Laboratory Animal Center
Equipment Manager: Li Baiheng, Liu Xiang
Contact: 15811869191, libaiheng@szbl.ac.cn
1. It uses a standard open - circuit breathing non - rebreathing system to reduce dead space.
2. It is designed for inhalation anesthesia in ≤7kg animals like rats, mice, rabbits, cats, hamsters, and guinea pigs.
3. The vaporizer has an output pressure fluctuation range of P ≤ 2.5 kPa, can withstand an internal pressure of 50 kPa without leakage, and functions in a temperature range of 10 - 35℃.
4. The vaporizer has a capacity of no less than 120ml and is equipped with automatic flow and temperature compensation functions.
5. The oxygen flowmeter has a controllable flow range of 0 - 4 L/min, enabling independent induction and maintenance of anesthesia, which can be performed simultaneously.
6. Toggle switches independently control five gas - outlet channels.
7. The quick - oxygen - filling switch can fill oxygen at a rate of up to 10 L/min to rapidly eliminate residual anesthetic gas in the circuit or induction chamber.
8. The rotating concentration - adjustment knob allows for isoflurane concentration adjustment between 0 - 5% (sevoflurane: 0 - 8% ), with an accuracy of ±0.5%.
