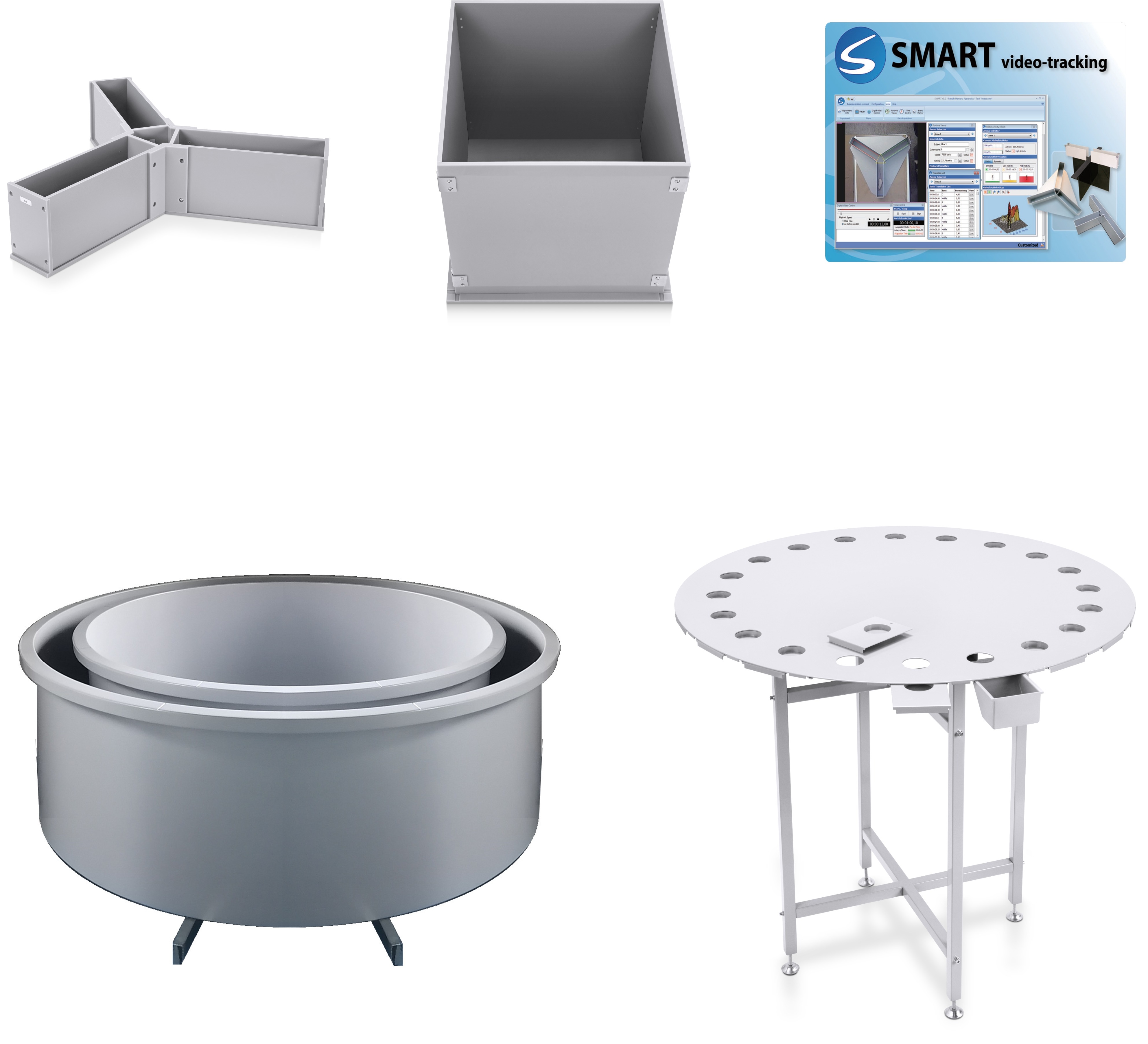

Water maze (Model: 63031, Asset No.: SZBLLAC002)
Y-maze (Model: 63006, Asset No.: SZBLLAC004)
Open field (Model: 63008, Asset No.: SZBLLAC006)
Barnes maze (Model: 63028, Asset No.: SZBLLAC005)
Conditioned place preference chamber (Model: 63020, Asset No.: SZBLLAC007)
Three-chamber social interaction chamber (Model: 63035, Asset No.: SZBLLAC008)
Small animal behavior analysis system (Model: SMART, Asset No.: S230000541)
Brand：RWD/panlab
Affiliated Core：Laboratory Animal Center
Location：2309k, Building A, Gaoke Innovation Center
Equipment Manager：Li Baiheng、Liu Xiang
Contact：15811869191，libaiheng@szbl.ac.cn
Water Maze:
1. Suitable for rat and mouse experiments, with an outer circle diameter of 180 cm, inner circle diameter of 120 cm, and height of 50 cm.
2. The platform diameter can be chosen from 6 cm, 9 cm, and 12 cm, with a platform height of 32 cm.
3. Comes with a rack, drain fittings, drain hose, and side cloth curtains.
4. The rack consists of three pieces of stainless steel 201, occupying a circular area with a diameter of 2.04 m. Each has a diameter of 3.8 cm and a length of 235 cm, with a height of 30 cm from the ground.
5. Equipped with an automatic constant - temperature box to maintain water temperature, including a 1000W auxiliary heating system (adjustable from room temperature to 30℃).
6. The drain hose has a diameter of 2.5 cm, and the drain fittings are made of stainless steel.
7. Three cloth curtains are provided, each approximately 1 mm thick, 180 cm long, and 270 cm wide.
Y - Maze:
Made of gray acrylic, each arm has an inner chamber length of 30 cm, width of 8 cm, and wall height of 15 cm. The outer length of each arm is 30.8 cm, width is 10.6 cm, and height is 15.8 cm, with an angle of 120° between the two arms.
Open Field:
Detachable, without a rack, made of gray acrylic. The inner chamber is 400 mm long, 400 mm wide, and 400 mm high, with a thickness of 8 mm. The overall dimensions are 450 mm in length, 450 mm in width, and 408 mm in height.
Barnes Maze:
1. The desktop has a diameter of 92 cm, hole diameter of 5 cm, and height of 77.5 cm (+0 to 3 cm). There are 20 holes, each 8.5 cm away from the edge of the desktop.
2. The target box has a base of 45*82 mm and a top of 10.6*8.2 cm, with a height of 5.85 cm.
3. The slope is 45 degrees.
4. The dummy box slots under other holes have a diameter of 51 mm and a depth of 1 cm.
5. The slots correspond to the holes, and in mice, the distance from the center of the slot to the edge is 8.5 cm.
Conditioned Place Preference Chamber:
1. Made of acrylic, it comes with doors, is assembled as a whole, non - detachable, and without a rack.
2. The inner chamber has a total length of 560 mm, middle length of 80 mm, total width of 250 mm, middle width of 50 mm, height of 250 mm, and wall thickness of 10 mm.
3. The outer walls of the two side chambers are gray.
4. The floor is gray and blue, and the central passage is half gray and half blue.
Three - Chamber Social Interaction Chamber:
1. Includes a chamber and two wire cages (part number 905 - 03007 - 00).
2. Chamber: (20+20+20) cm in length *40 cm in width *22 cm in height. The base, wire cage lid, and base panel are gray acrylic, while the other panels are colorless transparent acrylic.
3. The wire cage bars are colorless acrylic rods. For mice: outer/inner diameter is 10/7 cm, and height is 17.4 cm.
Small Animal Behavioral Analysis System:
1. Based on the Triwise three - point identification algorithm for precise positioning of animal limbs.
2. Combines dynamic trajectory tracking with global activity analysis.
3. Supports multi - spatial area division and synchronous tracking of 1 - 8 animals, with real - time output of over 200 behavioral indexes.
4. Its modular design is compatible with multi - processor computers, optimizing image processing performance for use in open field, water maze, and other experimental setting.
