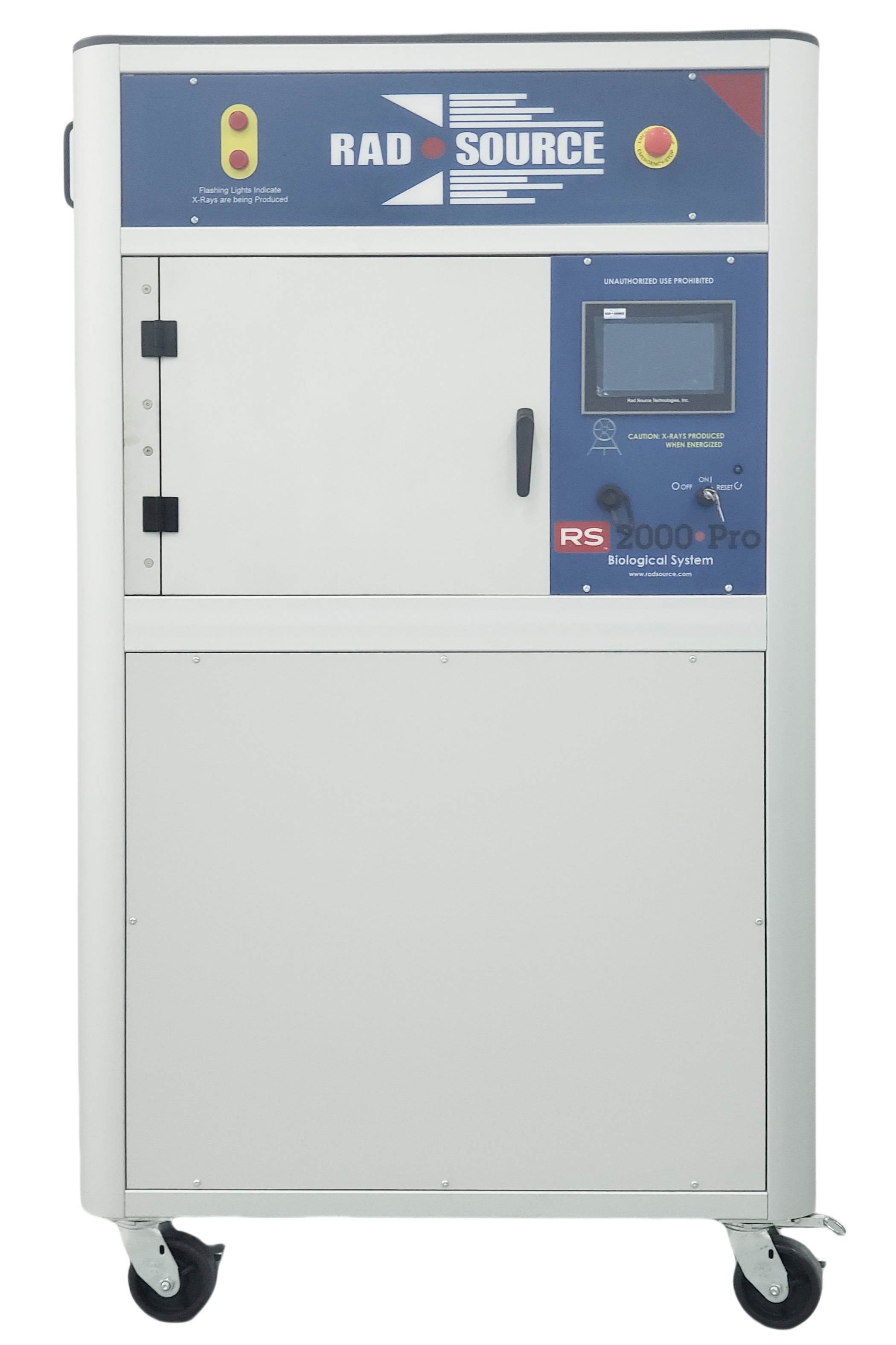

Brand：RadSource
Model：RS2000pro-225
Fixed Asset Number：S220002936
Affiliated Core：Laboratory Animal Center
Location：2309B, Building A, Gaoke Innovation Center
Equipment Manager：Li Baiheng、Liu Xiang
Contact：15811869191，libaiheng@szbl.ac.cn
Instrument Time Booking1. Irradiation Chamber
Chamber size: 43.2×48×38cm (W×H×D) (225KV);
Irradiation distance: 15cm～50cm SSD (225KV);
Homogeneous irradiation chamber (reflector): made of boron carbide, which can accommodate irradiation cages or four cell culture plates, with an irradiation area diameter of 0cm～35cm.
2. X-ray Tube
Tube voltage: up to 160KV, adjustable in 1KV increments;
Tube current: 25mA (at 160KV), adjustable in 0.1mA increments;
Tube life: no less than 3000 hours;
Beryllium window thickness: 2mm;
Maximum tube power: 4500W;
Tube radiation angle: 40°;
Filters: 0.3mm copper filter, 0.5mm aluminum filter.
3. Cooling Method
Water-cooled-air-cooled system;
Fully built-in cooling system, no water supply or drainage required, with a water tank capacity of 115L.
4. Irradiation Effect
Dose rate range: 0.01～40 Gy/min;
Irradiation dose range: 0～999Gy.
5. Irradiation Control
Setting accuracy ≥99%;
Timer: adjustable, 1～99min59sec.
6. Environmental Dose
When the instrument is operating, the environmental dose rate at a distance of 5cm from the instrument is no higher than 50uR/hr (0.5uSv/hr).
